Tile Insert Wall-Mounted Wall-to-Wall Linear Shower Drain by Drains Unlimited
Tile Insert Wall-Mounted Wall-to-Wall Linear Shower Drain by Drains Unlimited

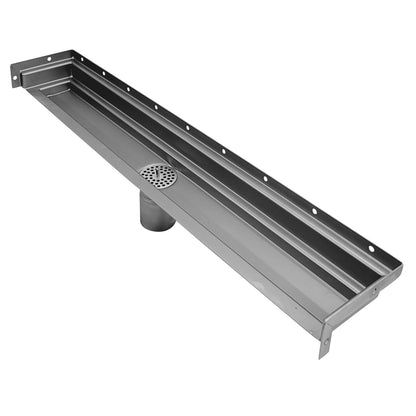

Three Side Return Flange for Wall-to-Wall Installation

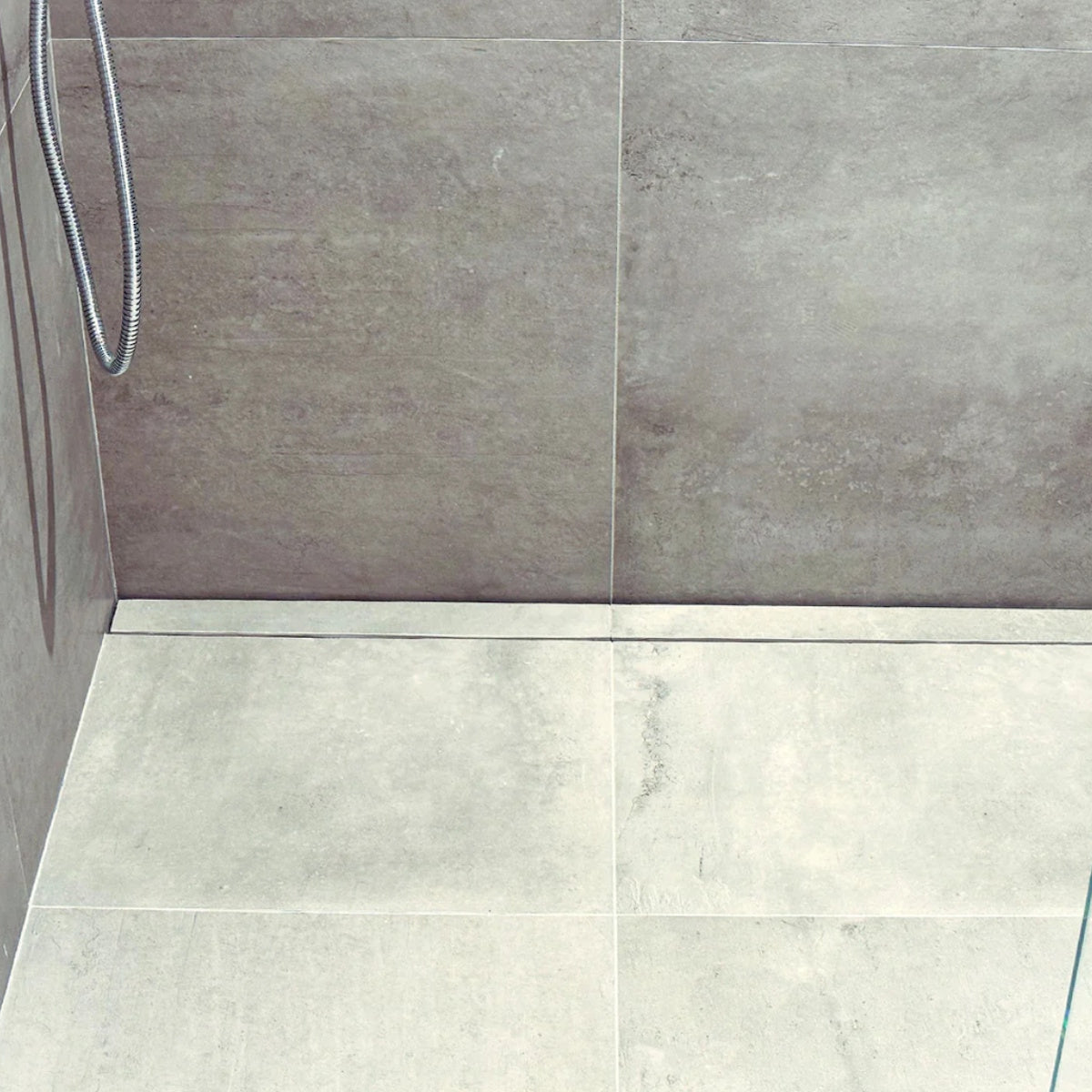

Upgrade your shower with this unique tile insert hidden wall-mounted linear drain, designed to install flush with the wall for a clean, seamless, and modern aesthetic. Unlike traditional linear drains that require a tile strip between the back wall and the drain, this innovative solution eliminates that need. By securing directly to the stud, it simplifies waterproofing and removes the need to float finish tile, delivering a sleek and cohesive look.
This is the perfect solution for anyone seeking a modern shower drain near the wall or a wall-to-wall linear drain installation.
Important Flange Options
DUFR Linear Drains are available in two configurations:

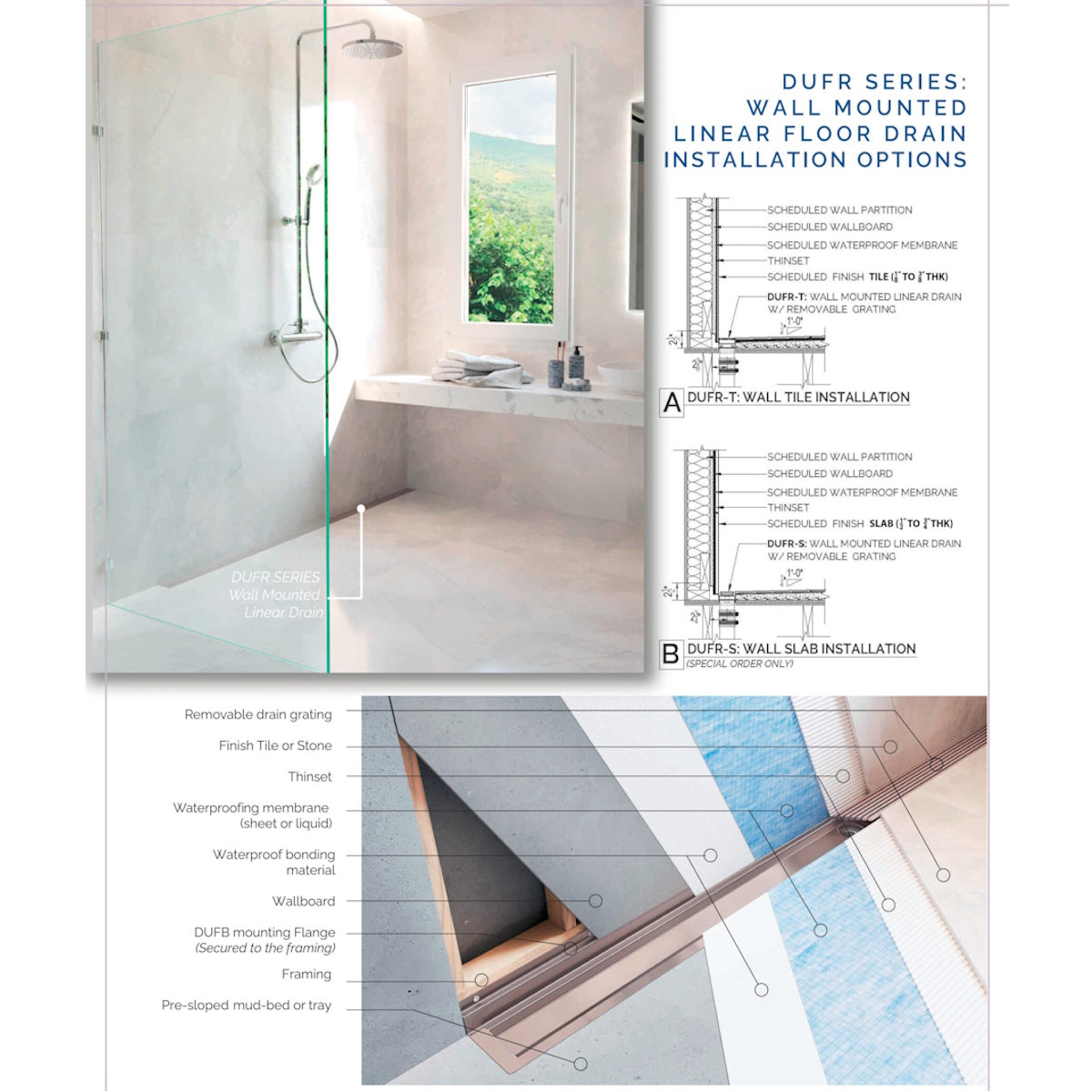

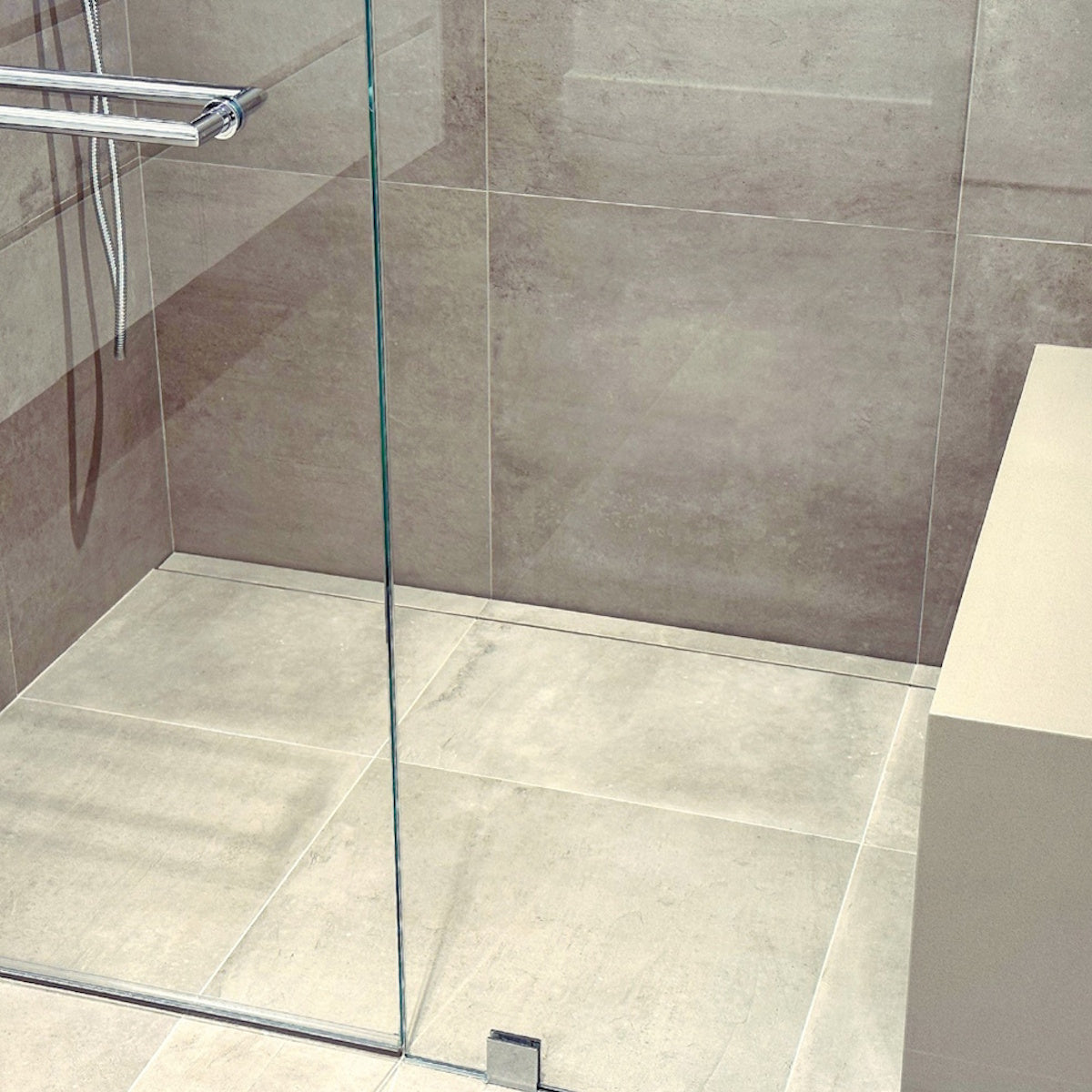

- Backwall Return Flange Only – Ideal for curbed or curbless installations with 1/8" to 3/8" thick wall tiles.

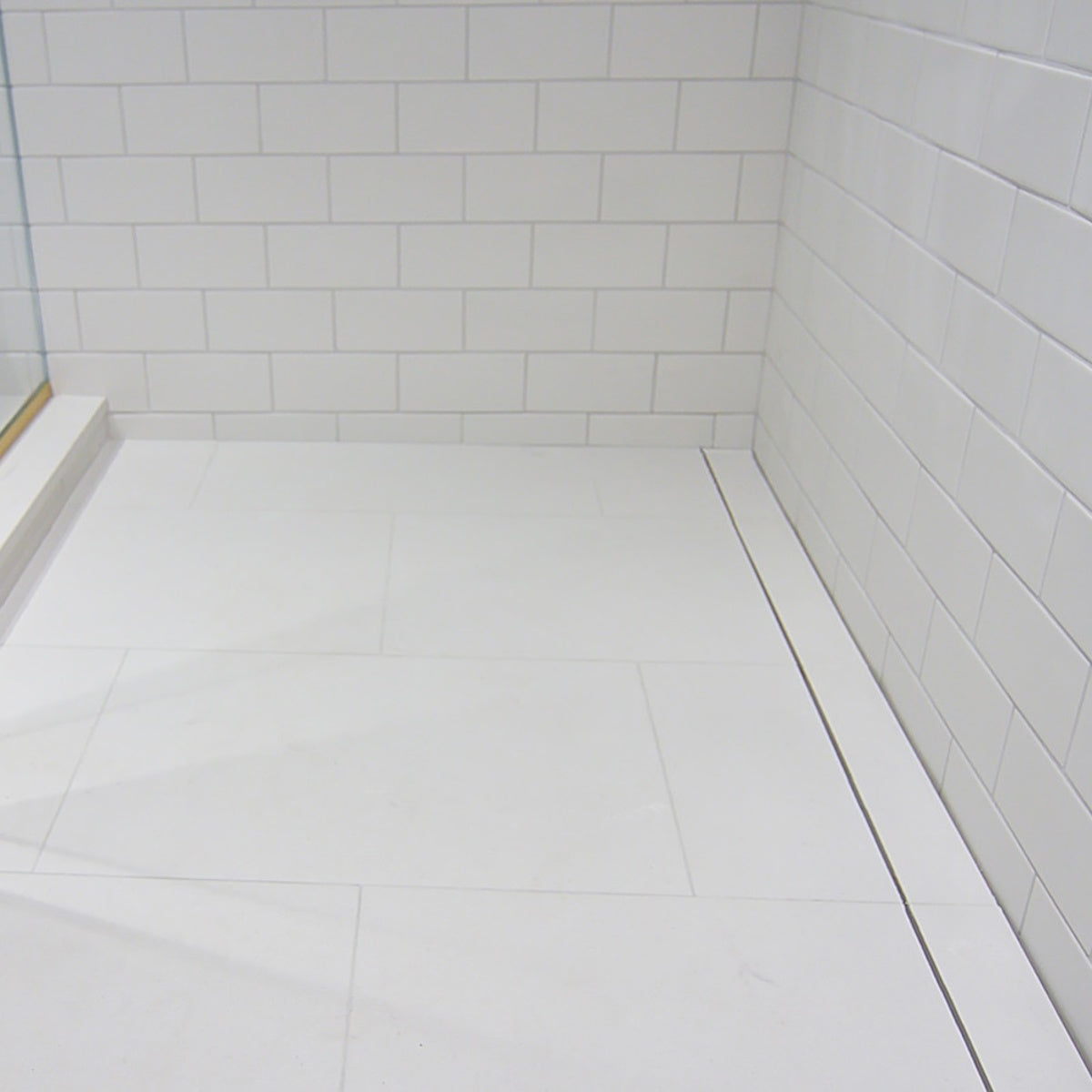

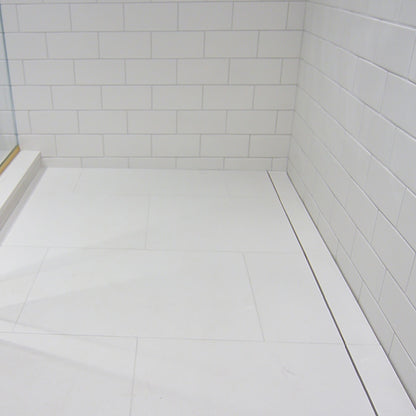

- Three Side Return Flange – Designed for wall-to-wall installations with 1/8" to 3/8" thick wall tiles.
Main Features

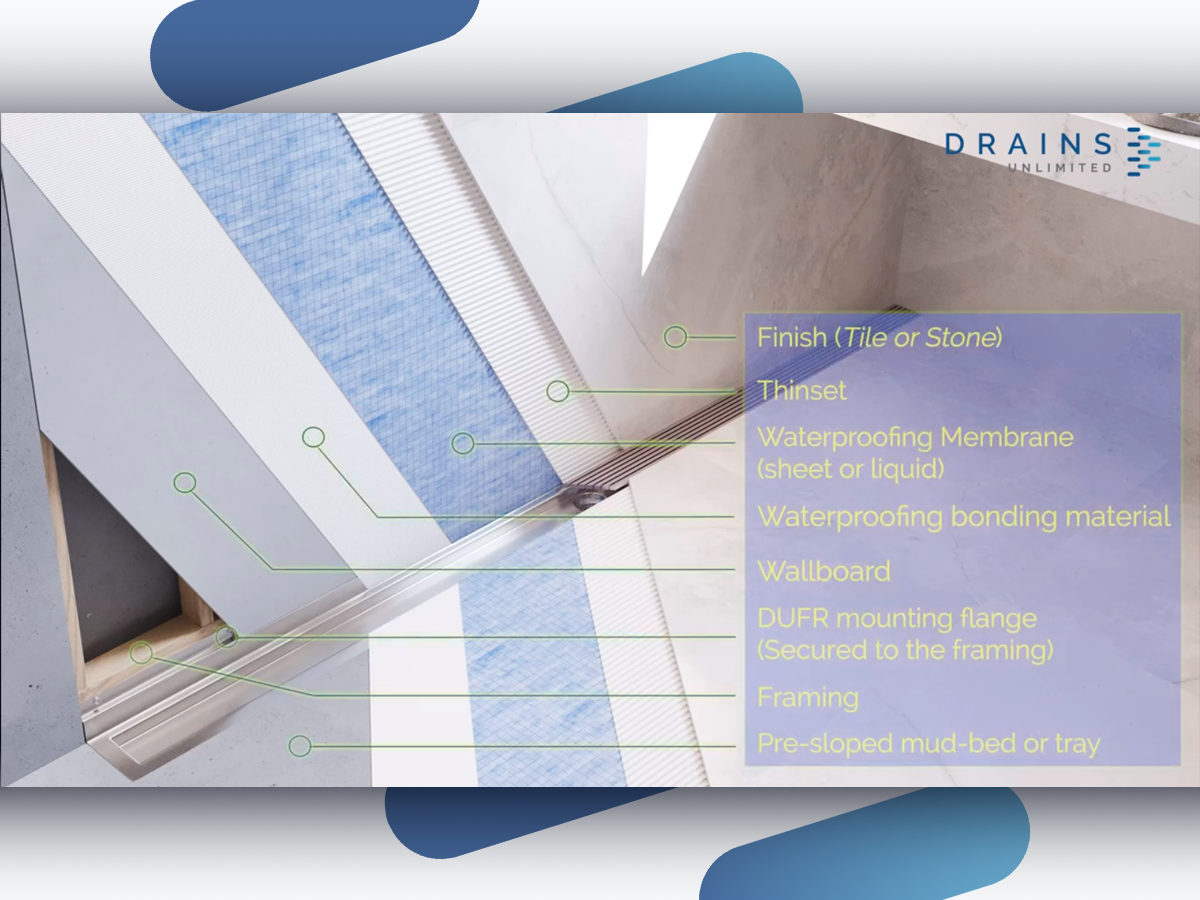

- Must be secured to the stud (wall framing)
- Installs flush with the wall for a seamless finish
- Full length measured between the finish face of the framing (Stud to Stud)
- Available in 3 styles and 3 finishes: Brushed, Polished, Black

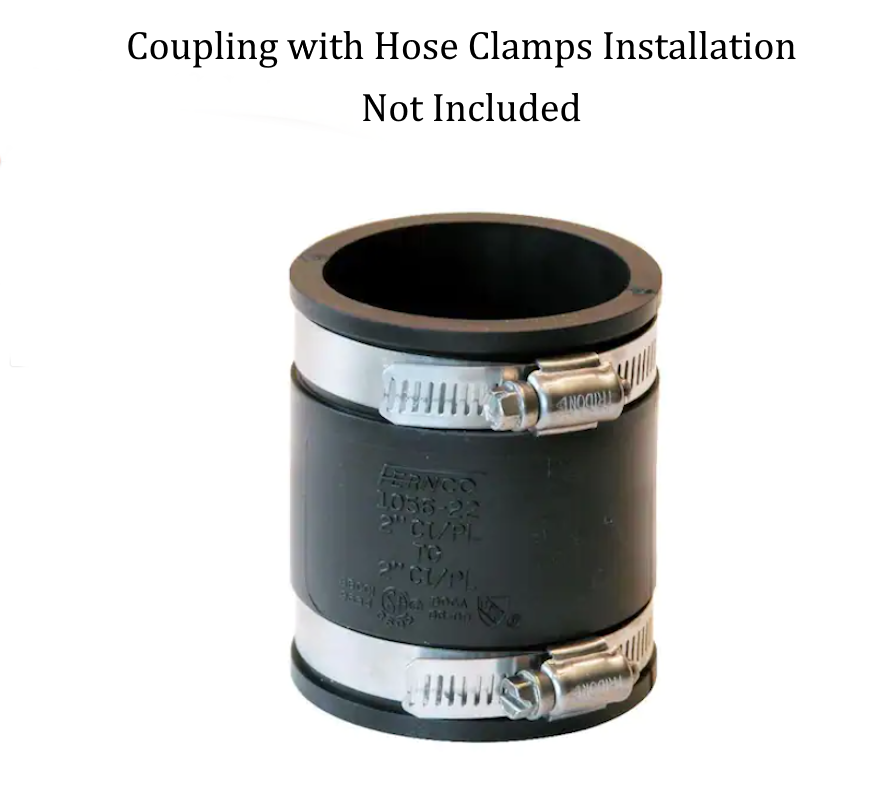

- No-hub coupling installation

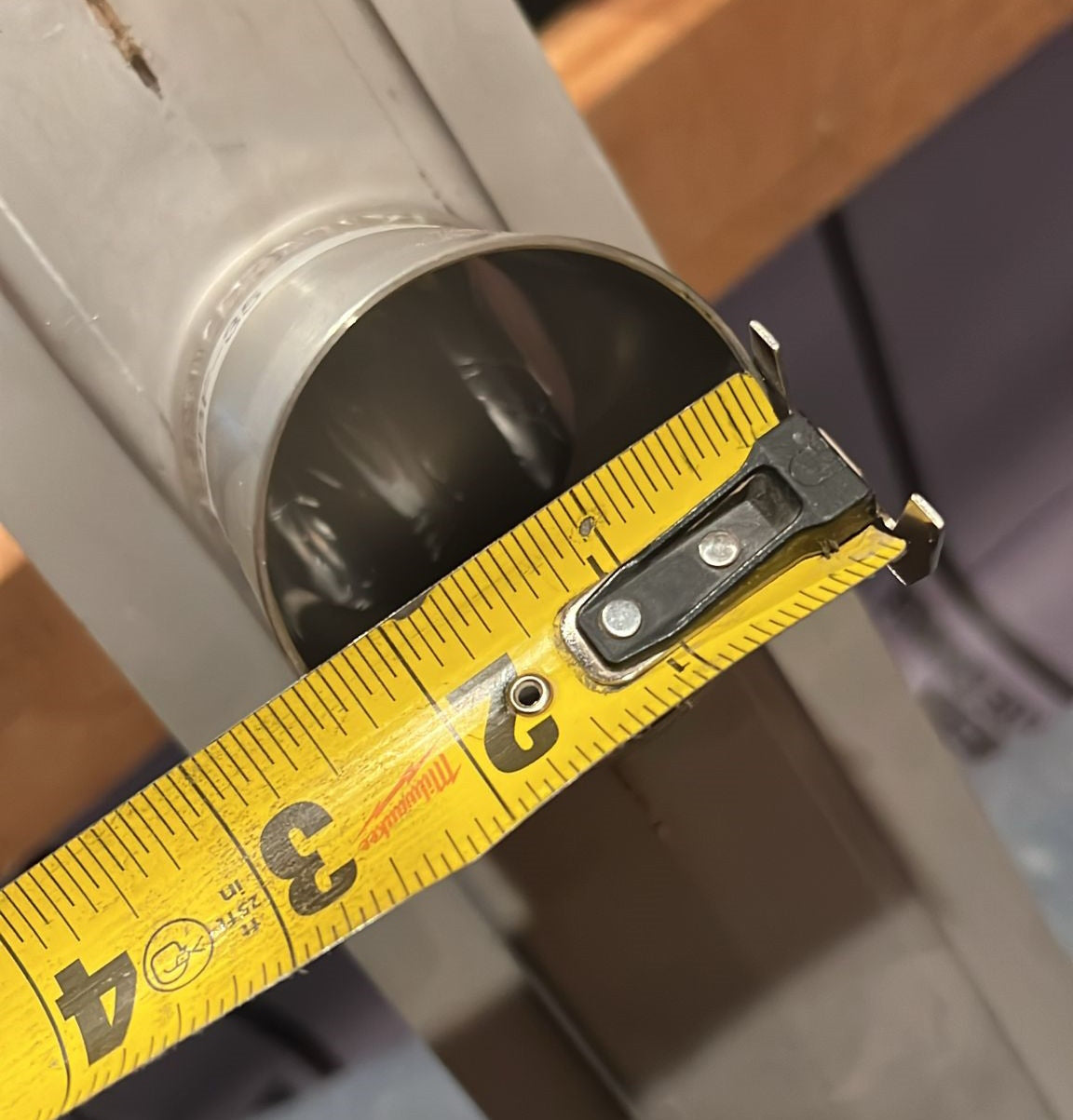

- 2-3/8" (OD) no-hub center outlet
- Textured bonding flange ensures a secure waterproof seal
- 2-1/2" wide grate cover with a shallow V-shaped bottom for efficient flow
- Made from 14-gauge AISI 304 stainless steel – rust-resistant and electro-passivated
Suitable Substrates
- Concrete
- Exterior glue plywood (interior only)
- Cement backer board
- Cement mortar bed
- Shower pans
Available Sizes
30", 32", 34", 36", 40", 42", 44", 48", 54", 60", 66", 72"
(Drain sizes are measured at the outer edge of the flange. Visible grate is approx. 2" shorter.)
Package Includes

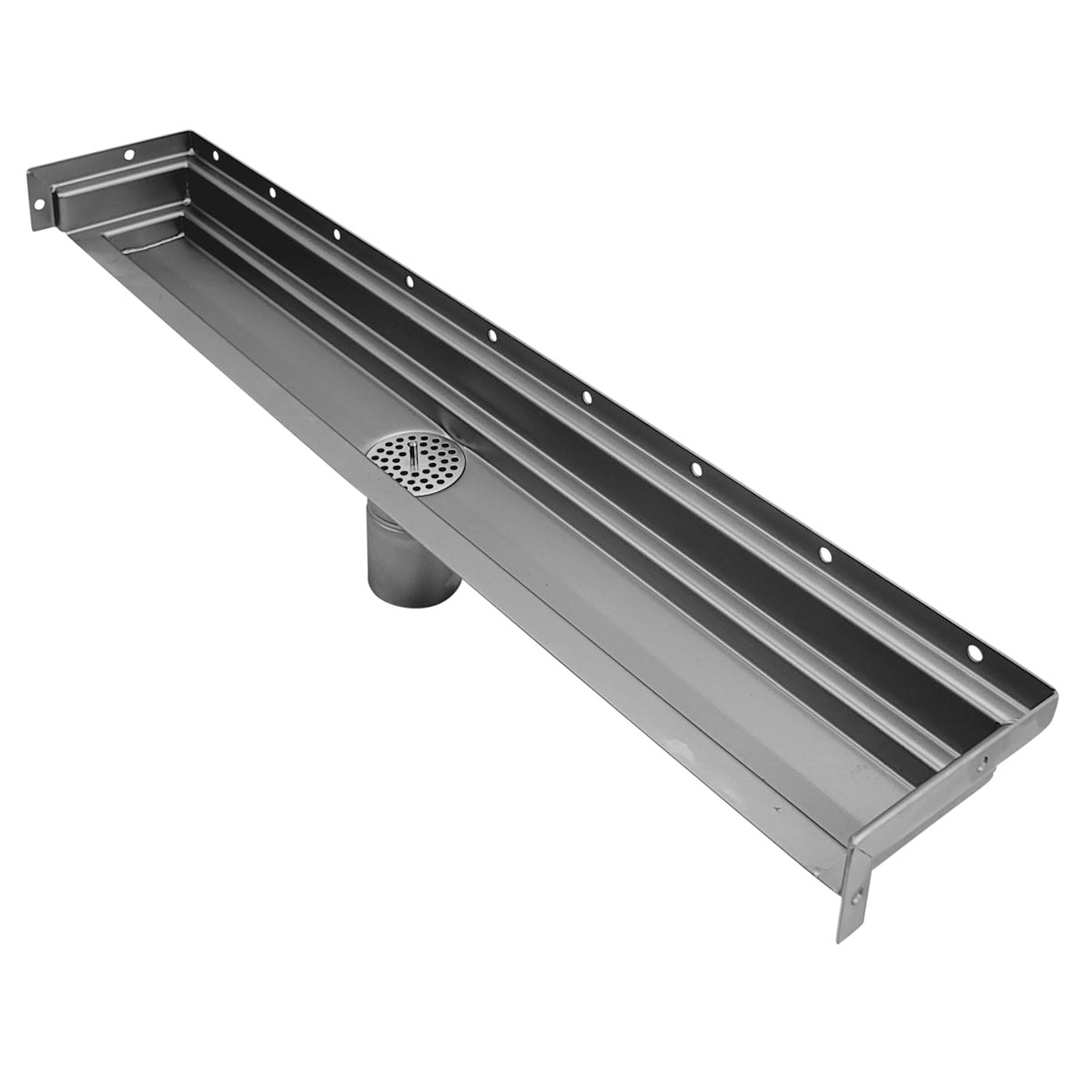

- Drain body
- Grate
- Hair strainer
- Puller key
Additional Features
- Compatible with leading waterproofing systems: Blanke Aqua-Shield, Laticrete, Mapei, Schluter
- Removable grate for easy cleaning and maintenance
- Single slope to drain
- UPC, CSA, and ASME certified
- Passivated finish offers excellent corrosion resistance
- Hygienic, barrier-free design
- High flow rate performance
- SANS10400 compliant 75mm water seal
- Accommodates any tile size or format
- Custom grate options and sizes available
Perfect For
Shower, bath, kitchen, hotel rooms, spa, and other wet areas.
