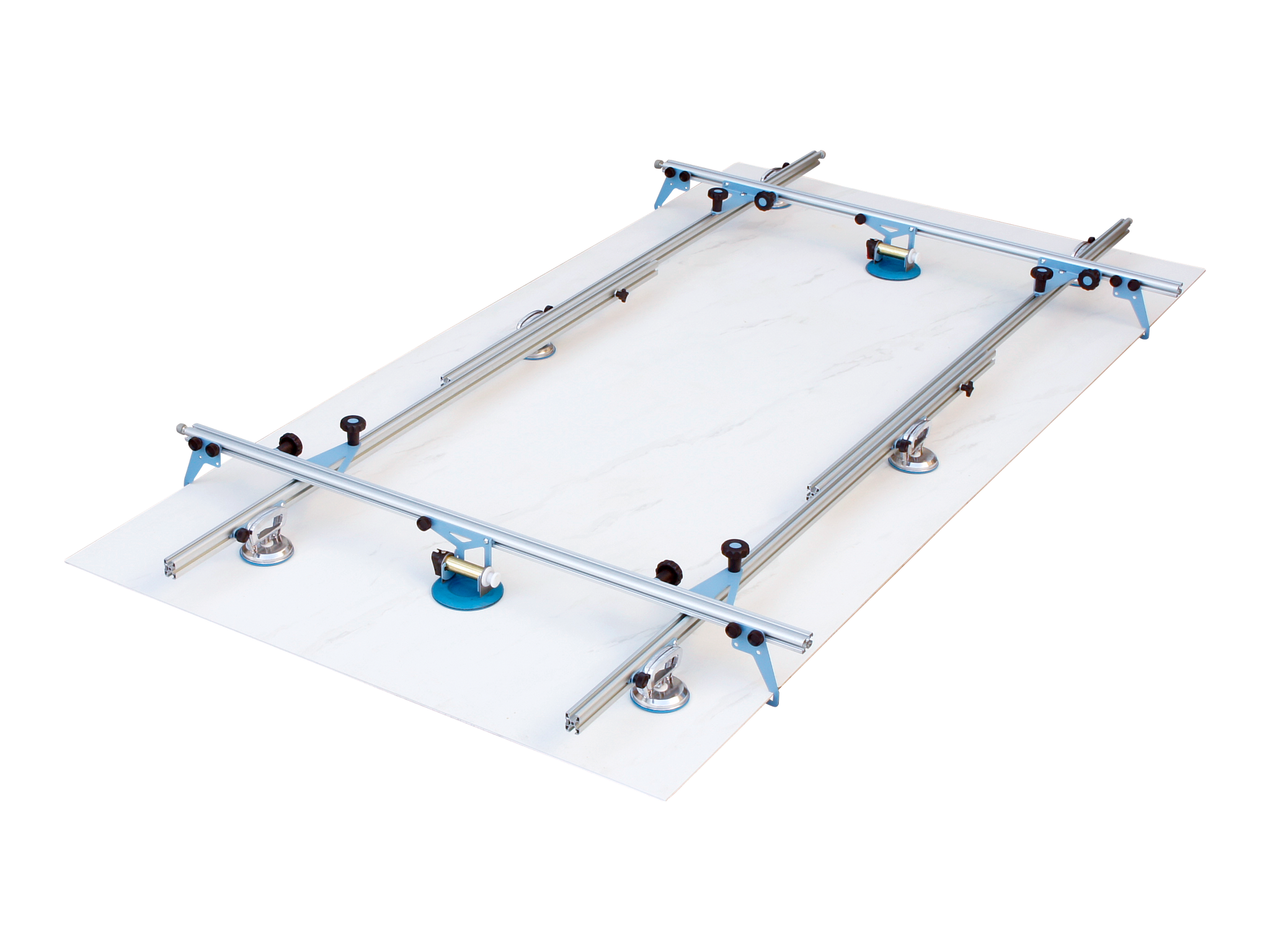

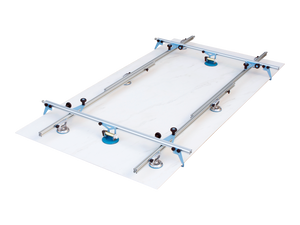

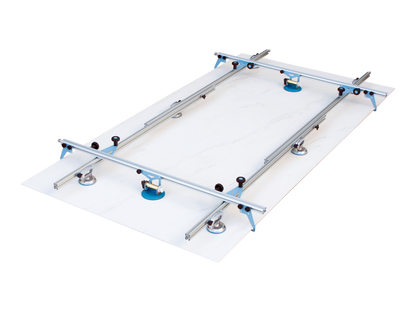

Sigma Kera-Lift Full Frame Thin Tile Lifter 134 in x 63in (2 Vacuum Cups, 6 Handle Suction Cups

Kera-Lift "1A4" is equipped as standard with:

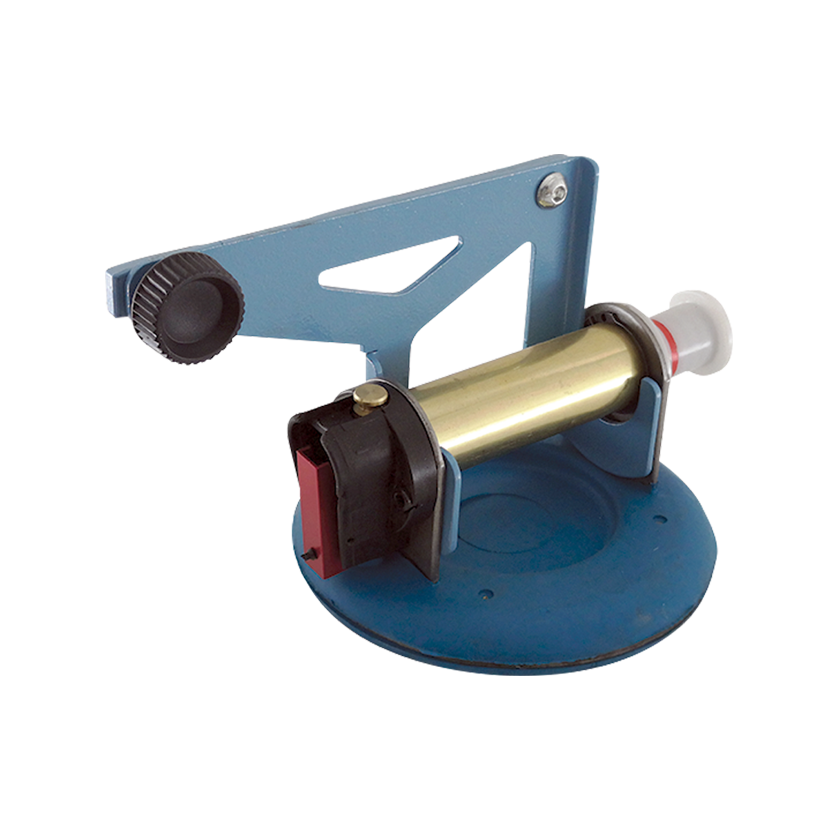

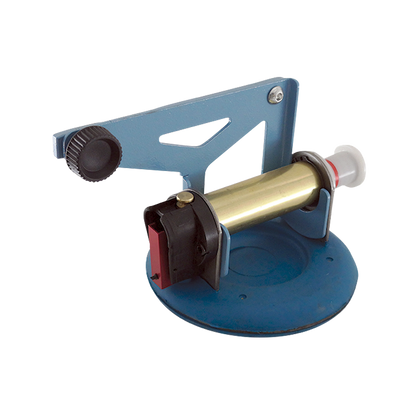

• 2 pump suction cups. The piston signals the vacuum inside the suction pad at all times.

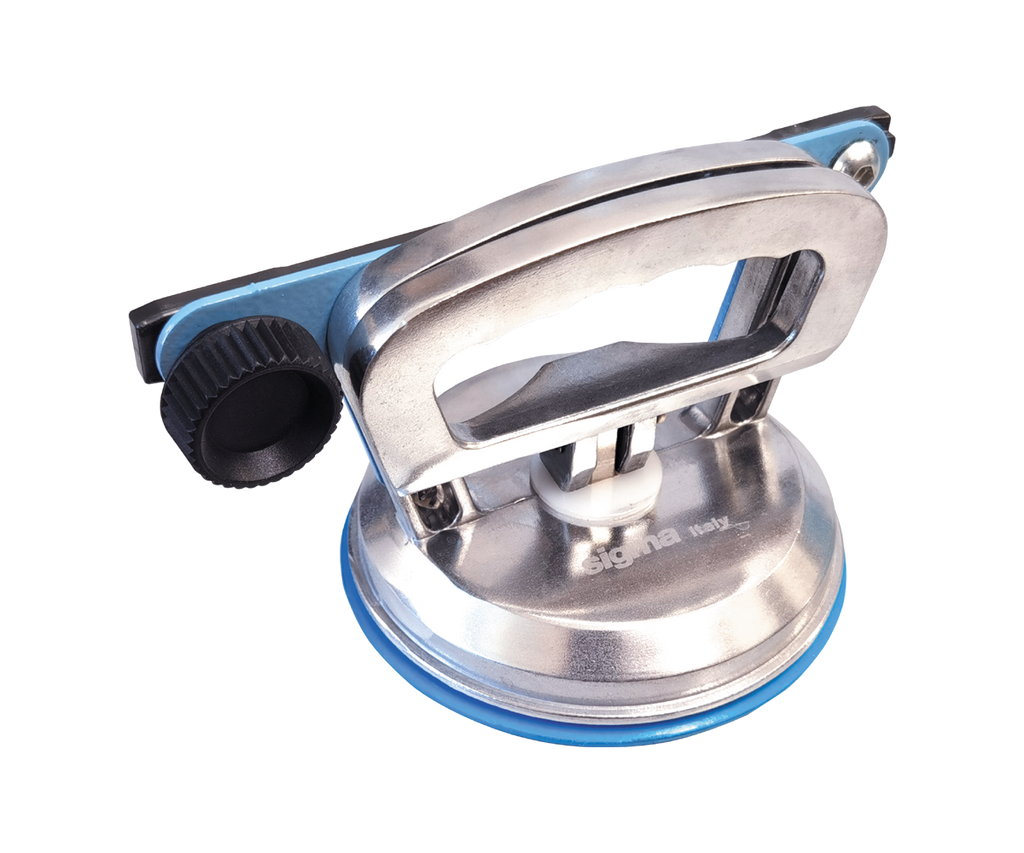

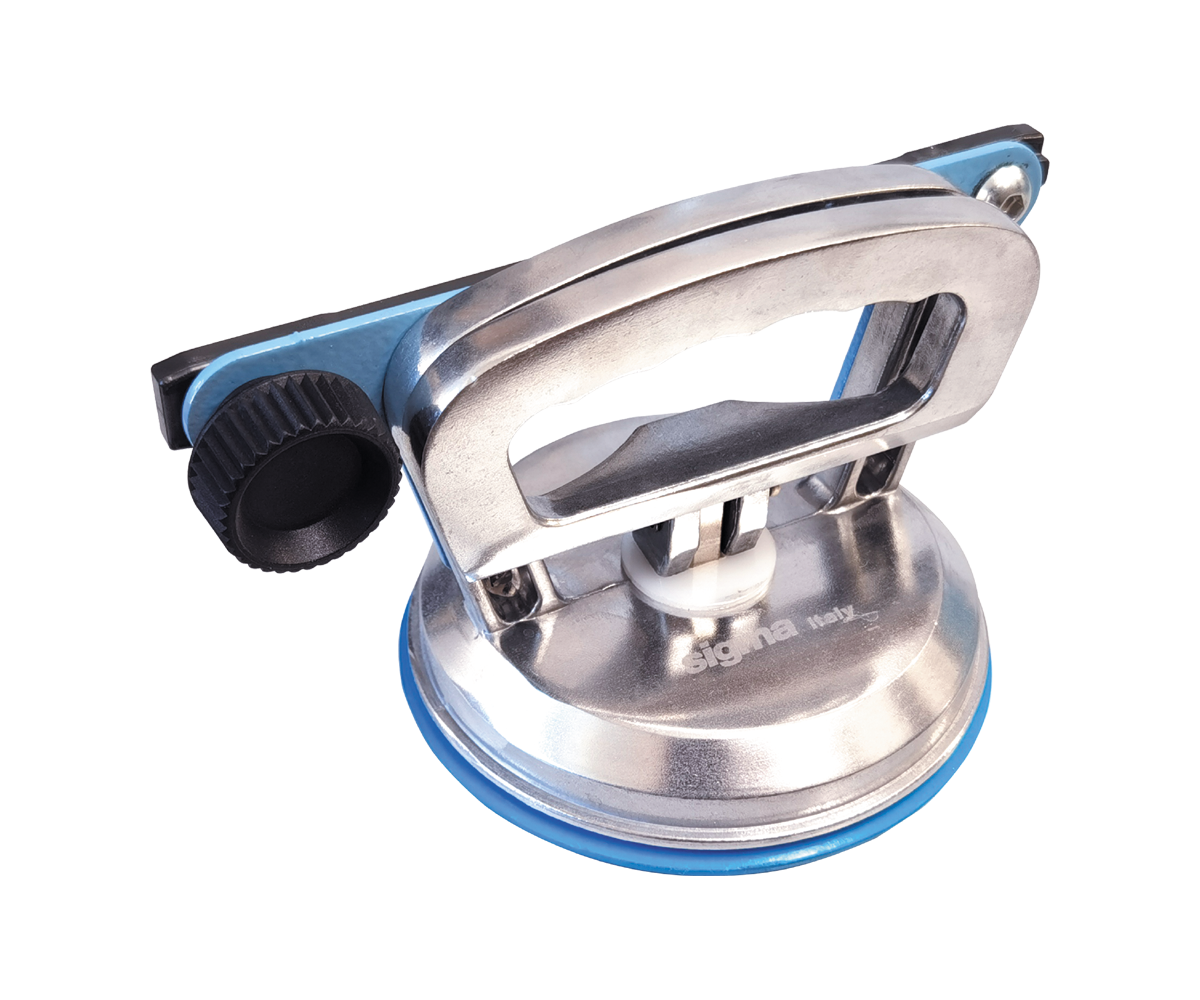

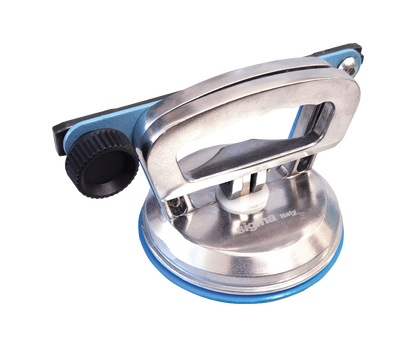

• 6 manual suction cups strong hold even on rough surfaces.

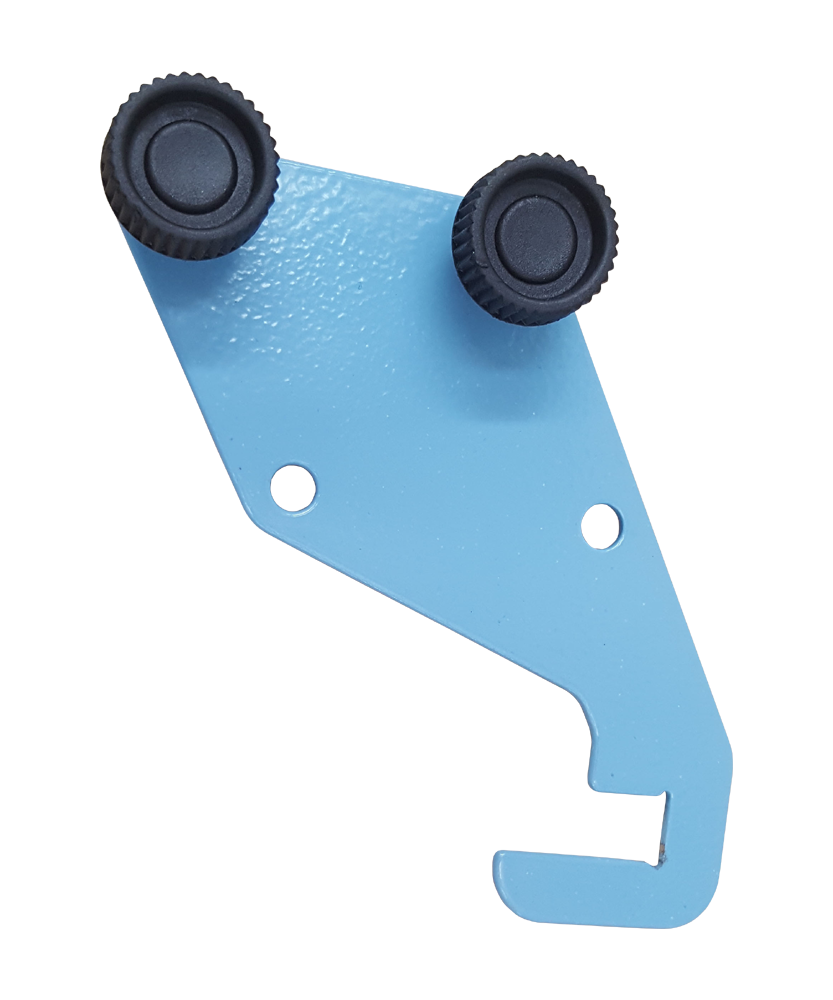

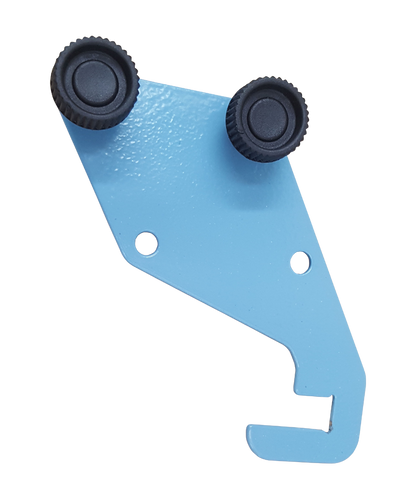

• 4 anti-fall safety devices which guarantee safety during handling.

The Sigma Kera-Lift stands out as the most dynamic handling system in its class, available in multiple sizes to cater to various needs. Its unparalleled performance ensures full material support in virtually any configuration, allowing users to adapt the tool for a wide range of cuts.

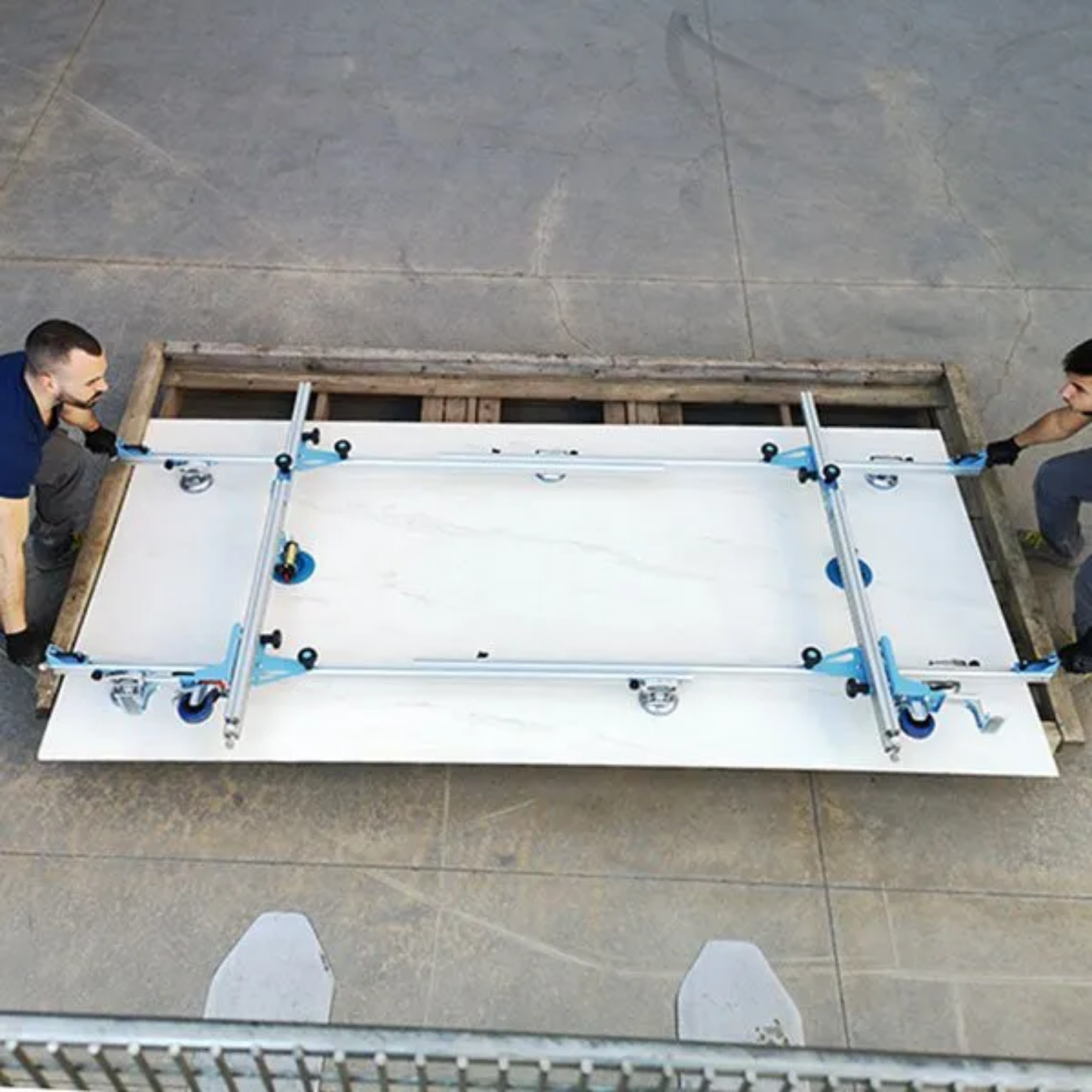

Transportation Emphasis: Efficient transportation of materials is crucial for successful tile installations. The Sigma Kera-Lift excels in this aspect, making it a preferred choice before the physical installation of tiles. Investing in this handling system ensures that you have nothing but the best support for your tile slabs.

Technical Features of the Kera-Lift Handling System:

Frame Design: The "Kera-Lift" frame features suction cups designed for lifting, handling, and laying large tiles. Freely modifiable without the use of tools, is made up of aluminum guides that slide together to adapt to any slab shape. The suction cups can slide along the profile to adapt to any requirement.

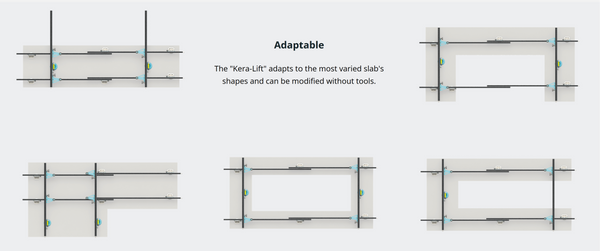

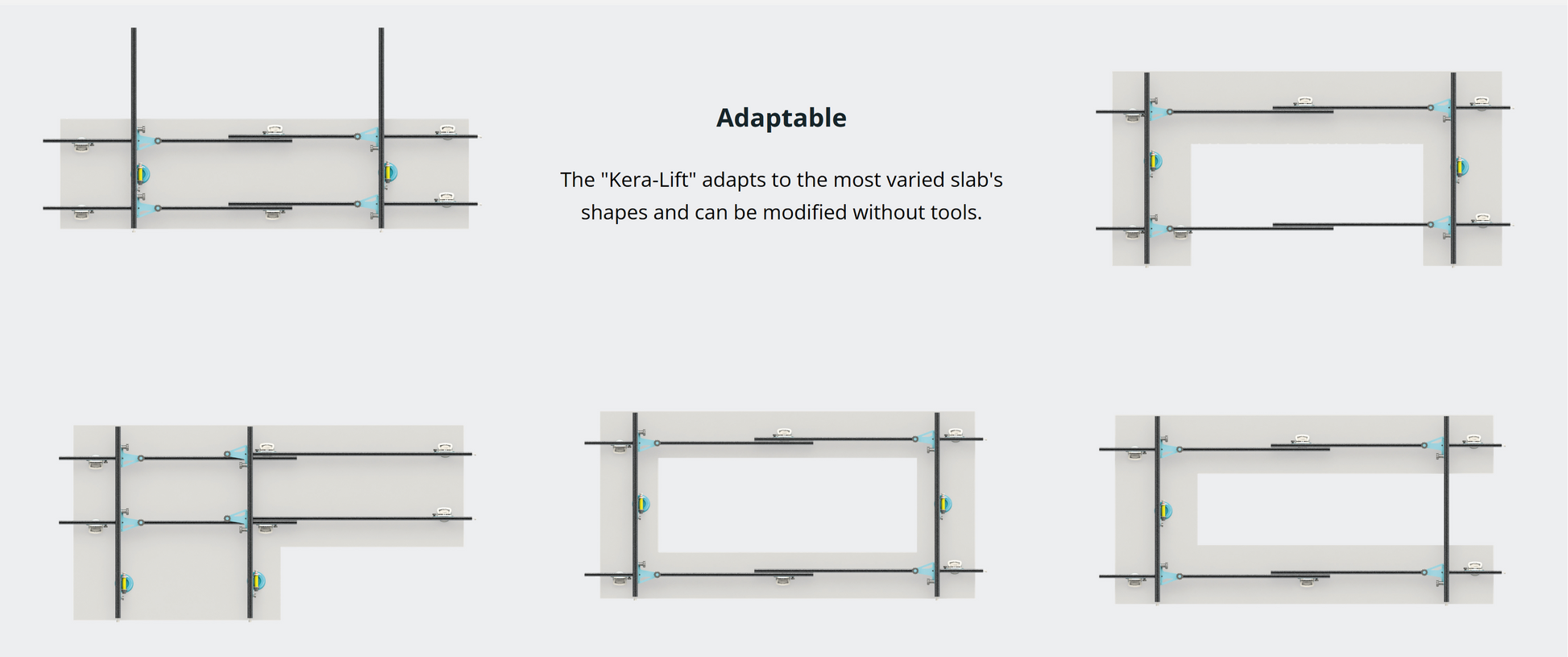

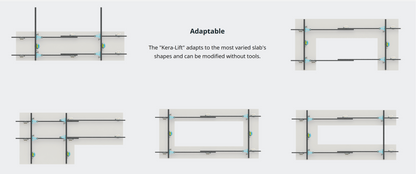

Adaptability: The "Kera-Lift" is adaptable to a variety of slab shapes and can be modified without the need for additional tools. Freely positionable suction cups that can slide along the profile to meet specific requirements.

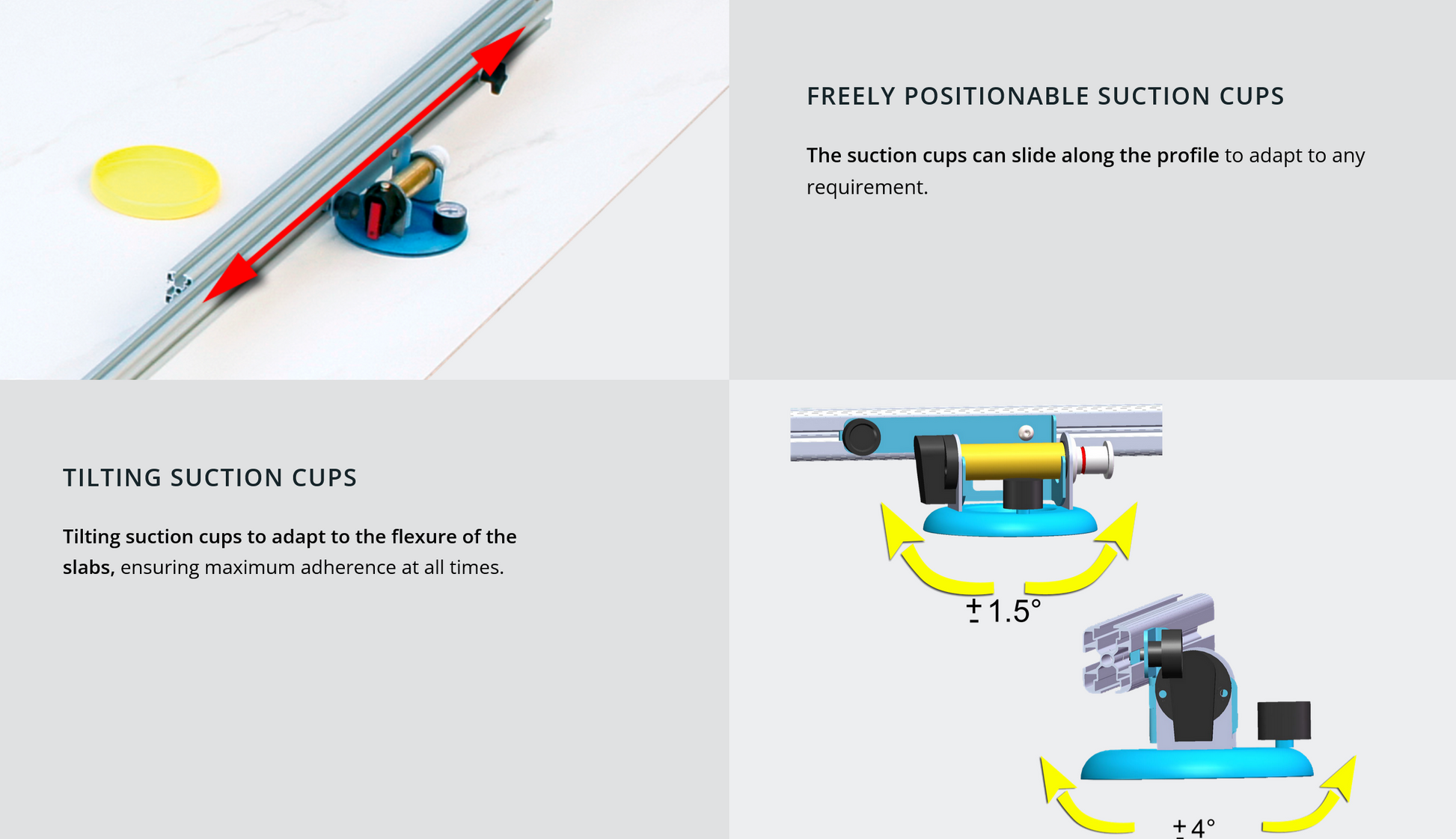

Tilting Suction Cups: Tilting suction cups designed to adapt to the flexure of the slabs, ensuring maximum adherence at all times.

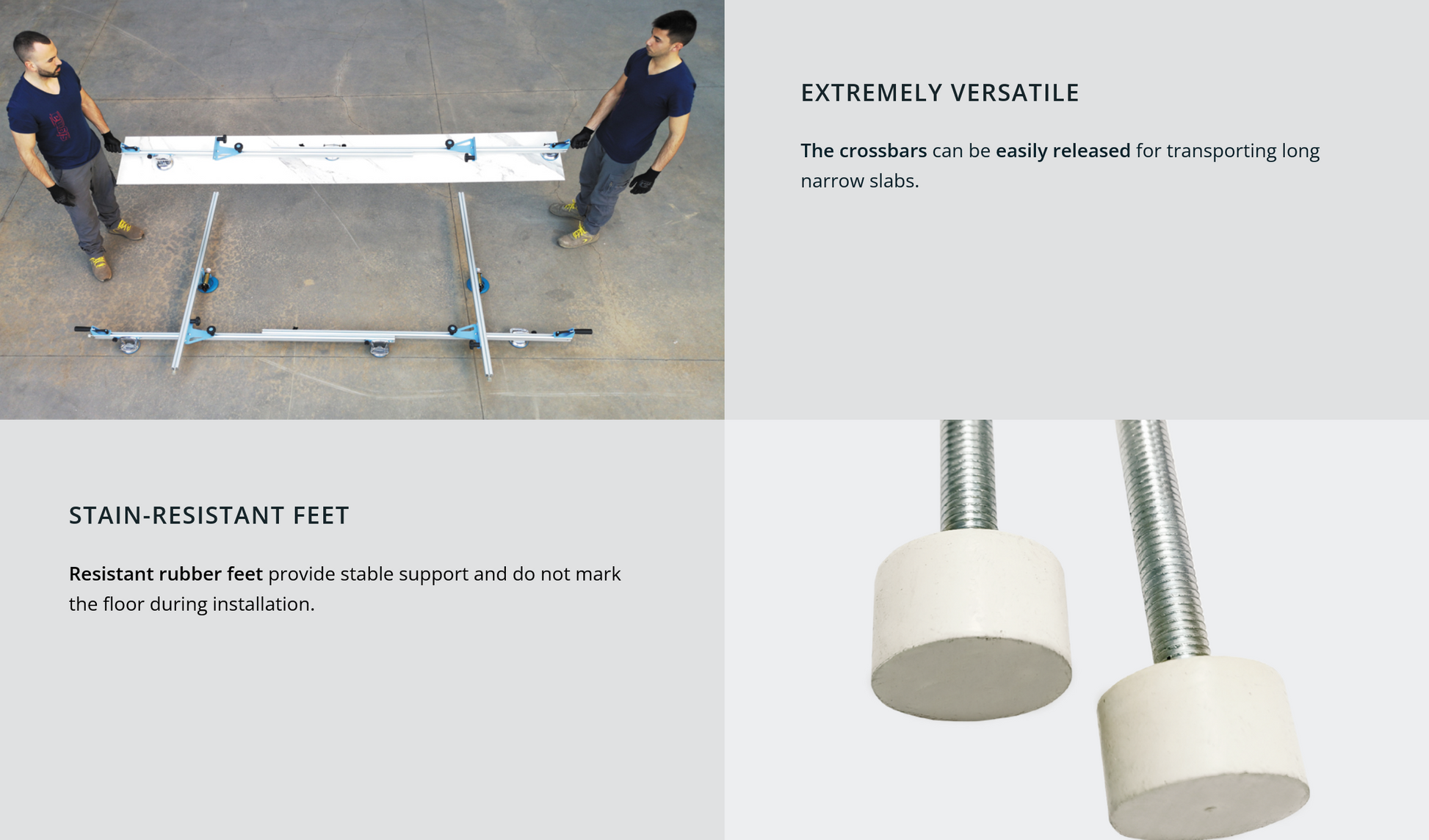

Versatility: Extremely versatile design with crossbars that can be easily released for transporting long narrow slabs.

Stain-Resistant Feet: Resistant rubber feet provide stable support and do not mark the floor during installation.

Available Models:

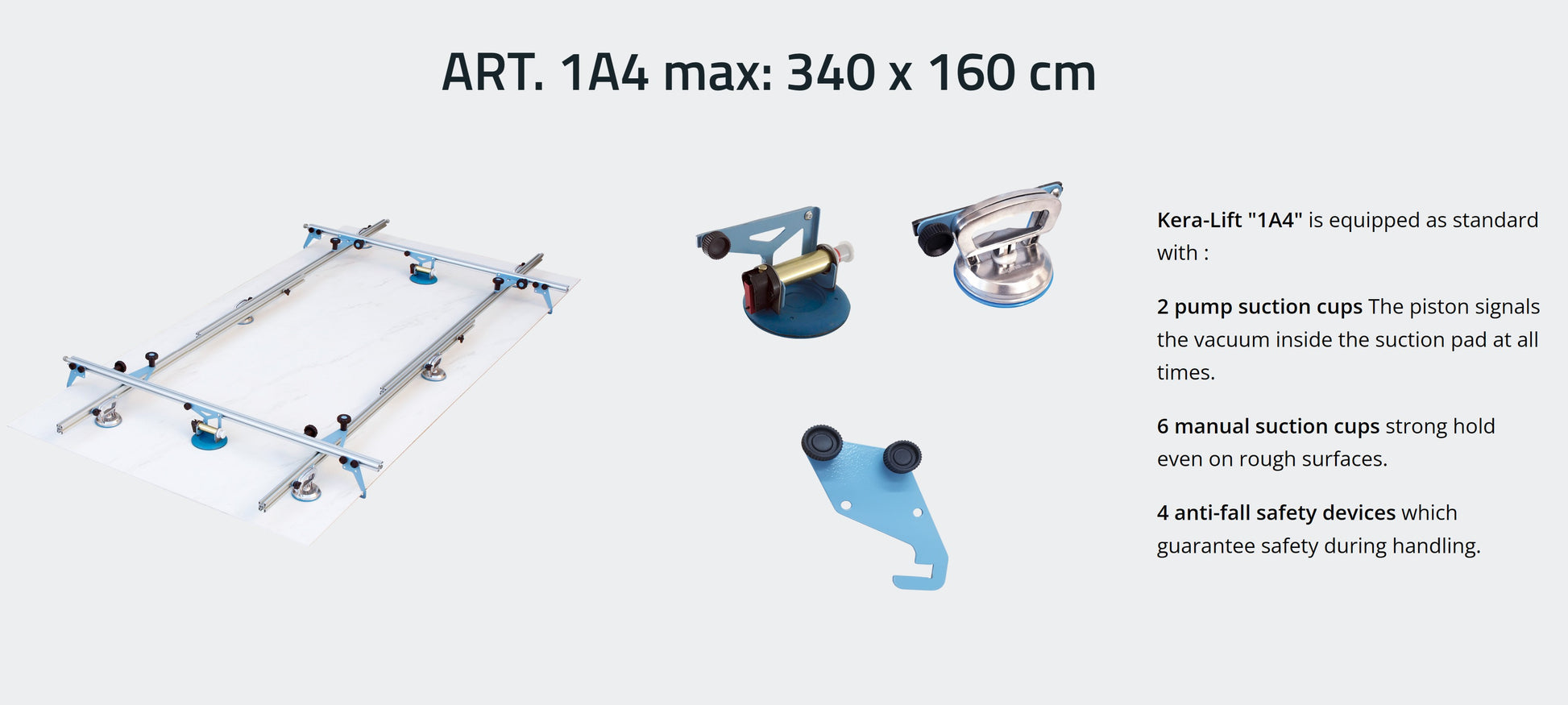

• ART. 1A4 max: 340 x 160 cm: Equipped with 2 pump suction cups, 6 manual suction cups for a strong hold even on rough surfaces, and 4 anti-fall safety devices.

• ART. 1A5 max: 340 x 160 cm: Equipped with 6 pump suction cups with a vacuum gauge, ensuring accuracy, and 4 anti-fall safety devices.

• ART. 1D2 max: 340 x 80 cm: Equipped with 4 manual suction cups for a strong hold on rough surfaces and 2 anti-fall safety devices.

Additional Accessories Available:

• ART. 421 Carriage Kit:

  • Allows the movement of the frame on wheels for easy and safe transportation, even over long distances.
  • Swivel wheel for maneuvering through routes with curves, and trestles to support the frame during thinset application.

• ART. 424 Handles Kit:

  • Enhances the lifting process, making it more comfortable.
  • Handles can be positioned along the uprights to allow installation without removing them from the frame.

Certification: All models are CE certified, ensuring compliance with safety and quality standards.
