30 Inch Linear Drain Offset Outlet with Hair Strainer by SereneDrains
30 Inch Linear Drain Offset Outlet with Hair Trap by SereneDrains
Net Size: 30" x 2 3/4" (762 mm)
Overall Size: 31.57" x 4 3/8"
Intake Surface Area: 17.62 sq. in.
(Additional sizes available — see below)
The Linear Drain Offset Outlet is ideal for installations where a traditional center outlet isn’t practical. Use this drain in the following situations:
- When a structural joist is located in the center of the shower floor area, and cutting, notching, or drilling into it isn’t an option due to building codes or structural concerns.
- When the shower is built over 4 inches or more of concrete, such as in slab-on-grade construction (a foundation where the concrete slab is poured directly on the ground). In these cases, relocating plumbing is costly and labor-intensive.
- When the existing vertical drain outlet is already positioned toward the side of the shower, and aligning the side outlet linear drain with the current plumbing saves time and money.
This side outlet configuration allows for flexible placement and is especially useful in remodels or concrete-based builds.
Note: Central vertical outlet linear drains are also available (consult a professional for guidance).
What's Included
- 100% Stainless Steel Channel Body & Grate
- Rubber Gasket
- Puller Key
- Waterproofing Membrane Sheet (included, though not required)
- Hair/Debris Strainer
- Installation Instructions
Design Options

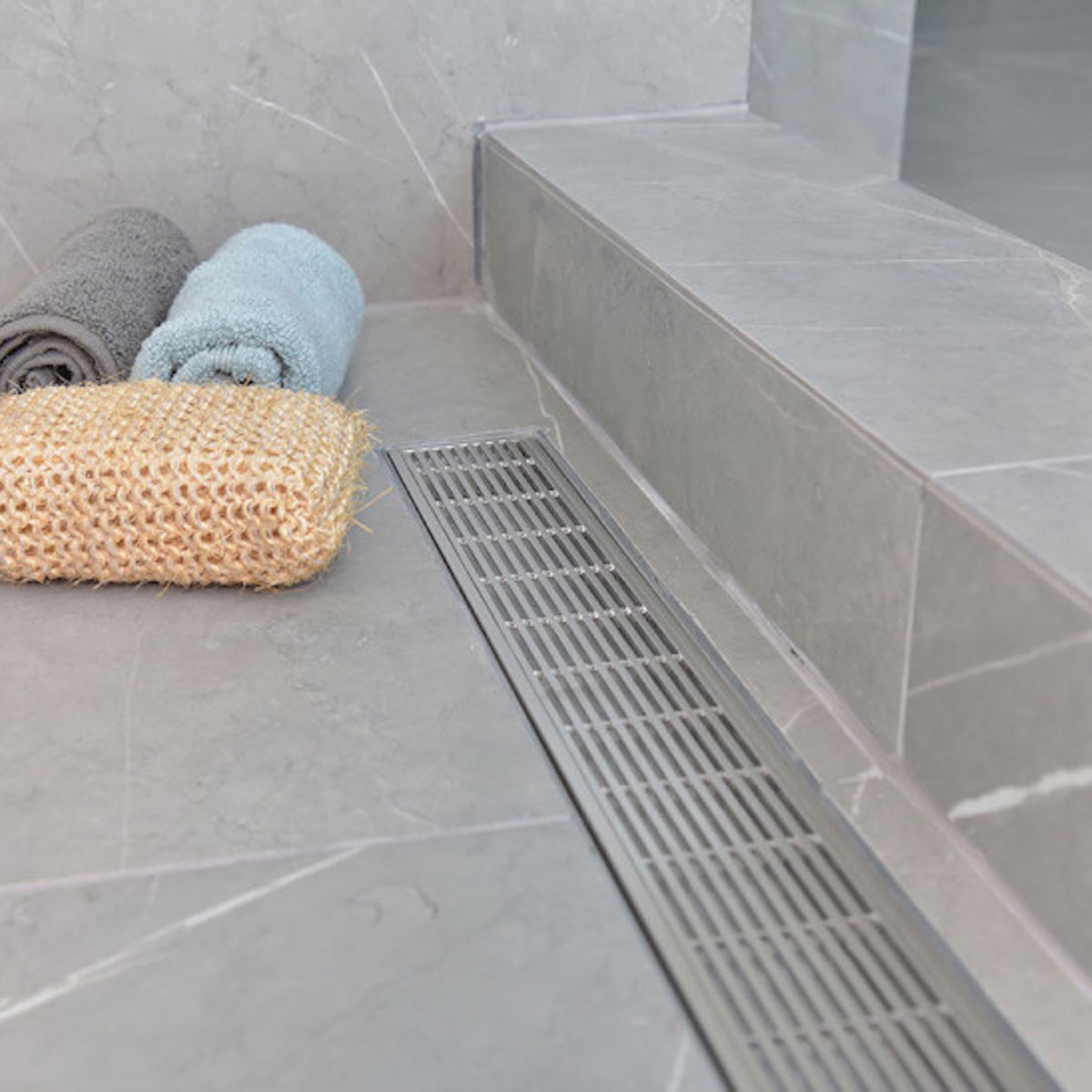

Choose from 6 luxurious grate designs: Wind Design, Ocean Wave Design, Traditional Square Design, Broken Lane Design, Tile Insert Design, Linear Wedge Design
Ideal For
Wheelchair-accessible and barrier-free showers (walk-in designs)
Applications: Showers, baths, hotel rooms, gyms, spas, and more.

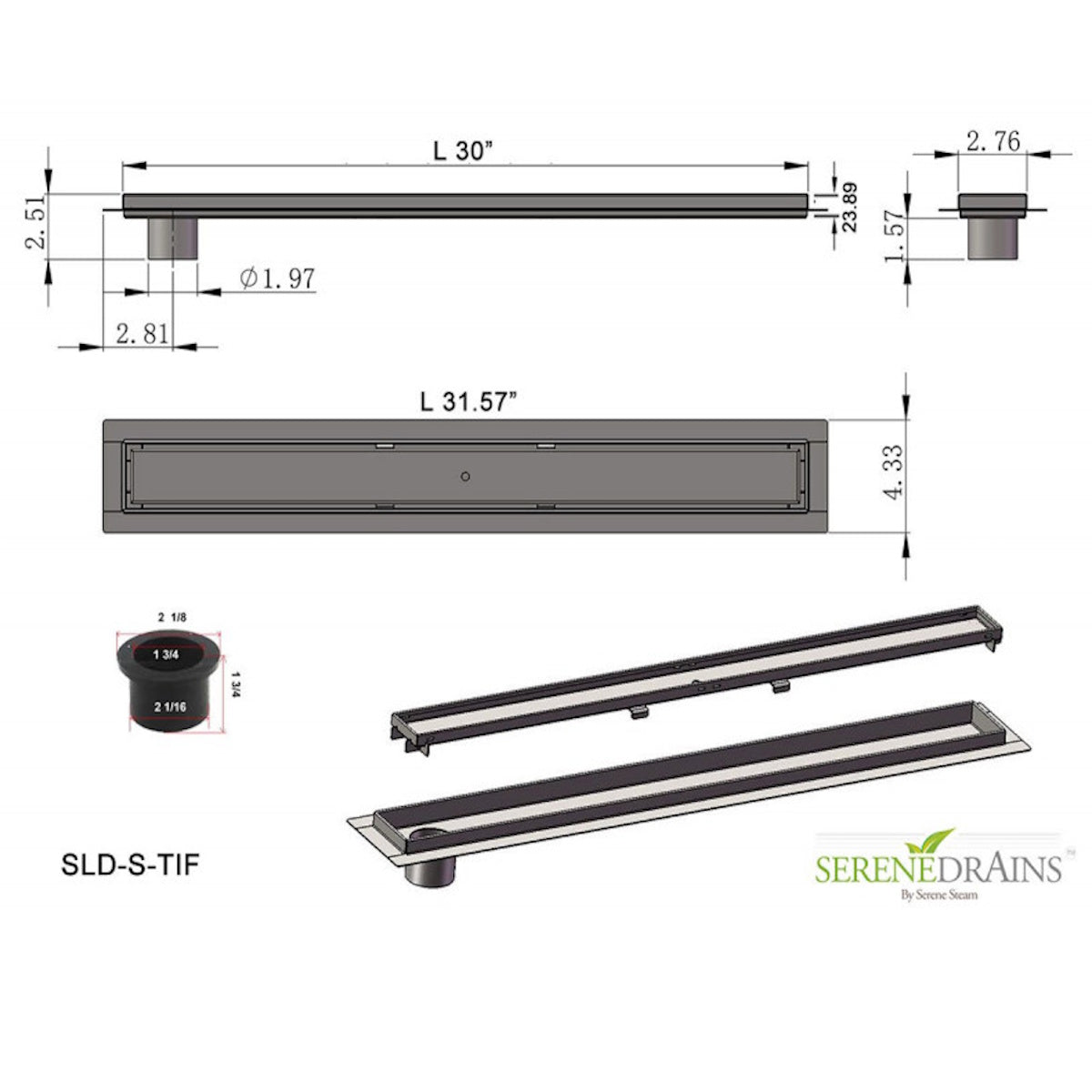

Construction Details
- Offset vertical outlet: 2.8" from end (center-to-outlet)
- Fits any standard 2" shower drain flange
- Fully welded and leak-tested stainless steel body
- Pre-sloped channel: 2 3/4" (70 mm) wide
- Compatible with tiles up to 10 mm thick (14 mm lip)
- Electro-polished finish
- Made from 16-gauge 304 stainless steel
- Sized to match 1/2", 1", 2", and 4" tiles — no cutting required
- Flow Rate:
• Entrance: 6.3 GPM (0.4 l/s)
• Wall-adjacent: 9.5 GPM (0.6 l/s) - Flange design supports all waterproofing methods: hot mop, liquid/painted membranes, sheet membranes, vinyl, etc.
- Durable, easy to maintain — no special cleaning required
Optional Accessories: ABS/PVC drain base flanges and additional debris strainers available
Available Sizes
| Size | Net Dimensions (in / mm) | Overall Dimensions | Intake Area (sq. in) |
|---|---|---|---|
| 16 Inch | 15 3/4" x 2 3/4" (400 mm) | 17 1/4" x 4 3/8" | 12.38 |
| 24 Inch | 23 1/2" x 2 3/4" (600 mm) | 25.2" x 4 3/8" | 14.96 |
| 30 Inch | 30" x 2 3/4" (762 mm) | 31.57" x 4 3/8" | 17.62 |
| 36 Inch | 35 3/8" x 2 3/4" (900 mm) | 37.01" x 4 3/8" | 20.03 |
| 40 Inch | 39 3/8" x 2 3/4" (1000 mm) | 40.95" x 4 3/8" | 21.12 |
| 48 Inch | 47 1/4" x 2 3/4" (1200 mm) | 48.82" x 4 3/8" | 26.68 |
| 60 Inch | 59.05" x 2 3/4" (1500 mm) | 60.63" x 4 3/8" | 31.67 |
Contact us for contractor pricing and quantity discounts.
