Linear Shower Drain Offset Outlet, 24 Inch Side Outlet Linear Drain with Hair Strainer by SereneDrains

Net Size: 23 1/2" x 2 3/4" (600 mm)
Overall Size: 25.2" x 4 3/8"
Intake Surface Area: 14.96 sq. in.
(Additional sizes available — see below)

The Linear Shower Drain Offset Outlet is ideal for installations where a traditional center outlet isn’t practical. Use this drain in the following situations:

• When a structural joist is located in the center of the shower floor area, and cutting, notching, or drilling into it isn’t an option due to building codes or structural concerns.
• When the shower is built over 4 inches or more of concrete, such as in slab-on-grade construction (a foundation where the concrete slab is poured directly on the ground). In these cases, relocating plumbing is costly and labor-intensive.
• When the existing vertical drain outlet is already positioned toward the side of the shower, and aligning the side outlet linear drain with the current plumbing saves time and money.

This side outlet configuration allows for flexible placement and is especially useful in remodels or concrete-based builds.

Note: Central vertical outlet linear drains are also available (consult a professional for guidance).

What’s Included

• 100% Stainless Steel Channel Body & Grate
• Rubber Gasket
• Puller Key
• Waterproofing Membrane Sheet (included, though not required)
• Hair/Debris Strainer
• Installation Instructions

Design Options

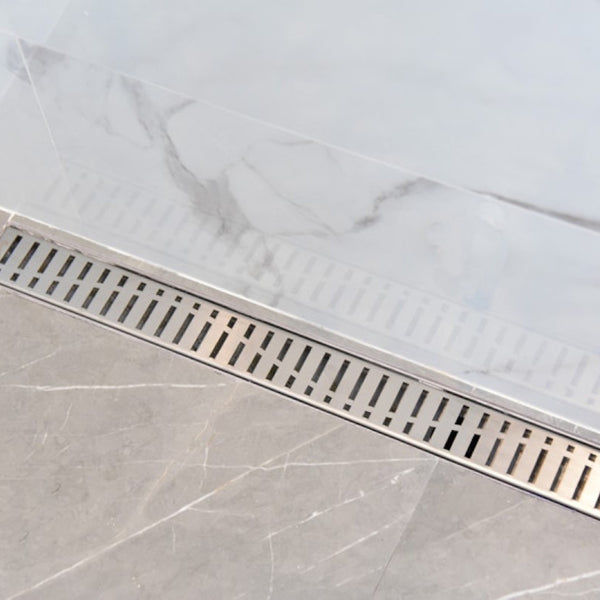

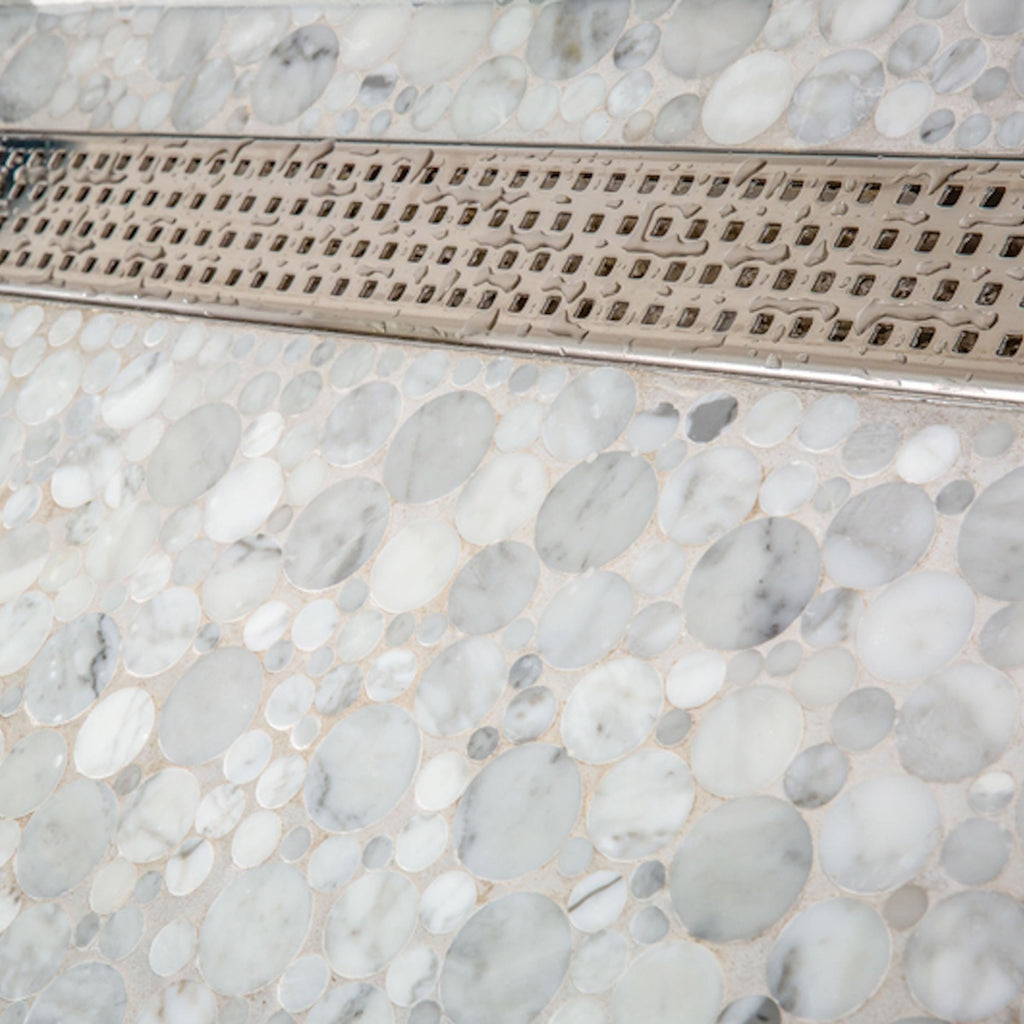

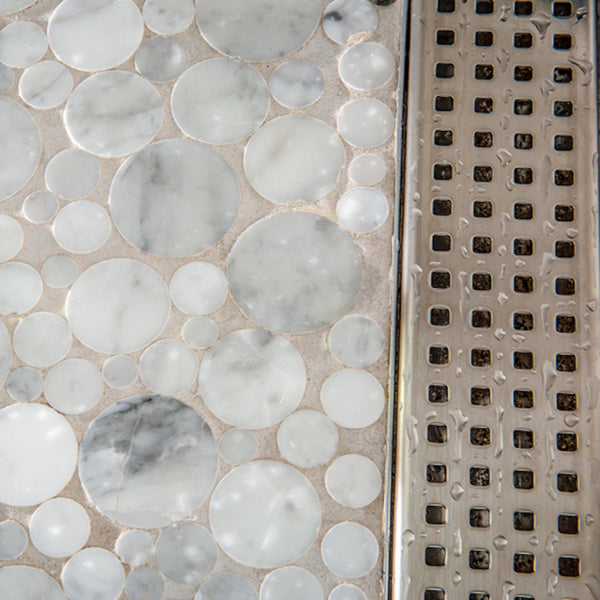

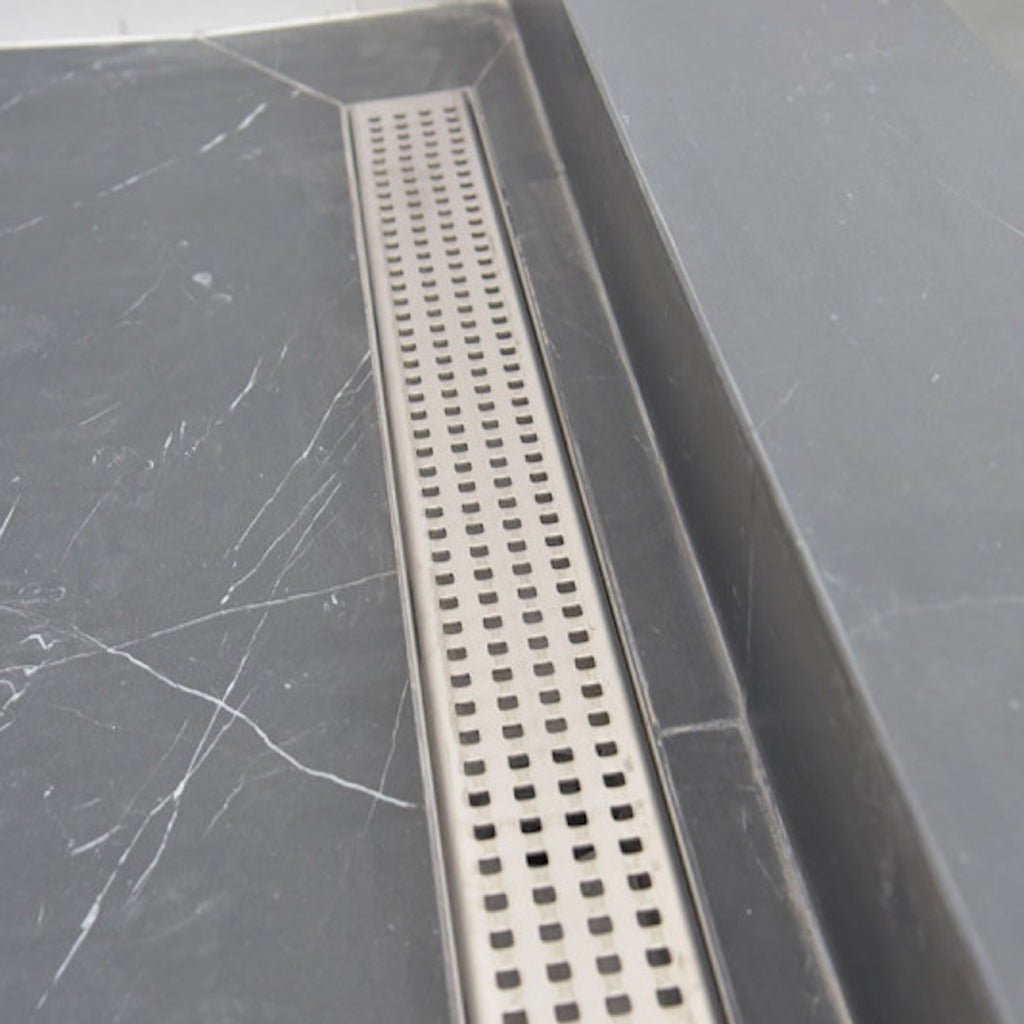

Choose from 6 luxurious grate designs: Wind Design, Ocean Wave Design, Traditional Square Design, Broken Lane Design, Tile Insert Design, Linear Wedge Design

Ideal For

Wheelchair-accessible and barrier-free showers (walk-in designs)
Applications: Showers, baths, hotel rooms, gyms, spas, and more

Construction Details

• Offset vertical outlet: 2.8" from end (center-to-outlet)
• Fits any standard 2" shower drain flange
• Fully welded and leak-tested stainless steel body
• Pre-sloped channel: 2 3/4" (70 mm) wide
• Compatible with tiles up to 10 mm thick (14 mm lip)
• Electro-polished finish
• Made from 16-gauge 304 stainless steel
• Sized to match 1/2", 1", 2", and 4" tiles — no cutting required

Flow Rate:

• Entrance: 6.3 GPM (0.4 l/s)
• Wall-adjacent: 9.5 GPM (0.6 l/s)

Flange design supports all waterproofing methods: hot mop, liquid/painted membranes, sheet membranes, vinyl, etc.

Available Sizes

• 16 Inch – 15 3/4" x 2 3/4" (400 mm), Overall: 17 1/4" x 4 3/8", Intake Area: 12.38 sq. in.
• 24 Inch – 23 1/2" x 2 3/4" (600 mm), Overall: 25.2" x 4 3/8", Intake Area: 14.96 sq. in.
• 30 Inch – 30" x 2 3/4" (762 mm), Overall: 31.57" x 4 3/8", Intake Area: 17.62 sq. in.
• 36 Inch – 35 3/8" x 2 3/4" (900 mm), Overall: 37.01" x 4 3/8", Intake Area: 20.03 sq. in.
• 40 Inch – 39 3/8" x 2 3/4" (1000 mm), Overall: 40.95" x 4 3/8", Intake Area: 21.12 sq. in.
• 48 Inch – 47 1/4" x 2 3/4" (1200 mm), Overall: 48.82" x 4 3/8", Intake Area: 26.68 sq. in.
• 60 Inch – 59.05" x 2 3/4" (1500 mm), Overall: 60.63" x 4 3/8", Intake Area: 31.67 sq. in.

Contact us for contractor pricing and quantity discounts.
